Find the Optimal Stock Portfolio with a Genetic Algorithm

Note: This article was published on Medium. You can find the original article here.

If you are someone like me, who is scratching his head about how to invest money, this article might be for you!

This article is not investment advice, so please use it at your own discretion. I don’t accept any liabilities for your financial decisions.

Background

Is there a way to invest in a smaller group of stocks to obtain an above-average risk-adjusted return? E.g. can we identify 10 stocks (E.g. 1. Tesla + 2. IBM + 3. Chevron + … + 10. Gamestop), which may be performing average individually, but yield strong results when invested at the same time?

If we were to try all 10-stock combinations from S&P 500, that would be 245,810,588,801,891,070,000 combinations, which would require a crazy amount of time to find the “optimal” 10-stock portfolio. In such a scenario, the Genetic Algorithm comes in handy, as it takes a significantly shorter time to find a “good-enough” solution.

Problem Statement

We want to find a 10-stock combination from stocks listed in S&P 500, that yields the best risk-adjusted-return. Return will be the % growth of that portfolio, while risk will be the standard deviation observed along the invested time period. Risk-adjusted return is just return divided by risk.

Method

We will be using a Genetic Algorithm to iterate through 10-stock combinations and try to find the best risk-adjusted return. The below video gives a good overview of Genetic Algorithms.

On a high level, Genetic Algorithms simulate evolution, by iterating through generations of portfolios, and only remaining the ones with strong “fitness” (risk-adjusted return of a portfolio). Mechanisms like “crossover” (combining 2 existing stock portfolios to generate a new one) and “mutation” (randomly swapping a stock in a portfolio with another one) prevent the model get stuck on local minima and introduce diversity in the calculation process.

We will be using the PyGAD library in Python which helps us easily implement the genetic algorithms.

Data

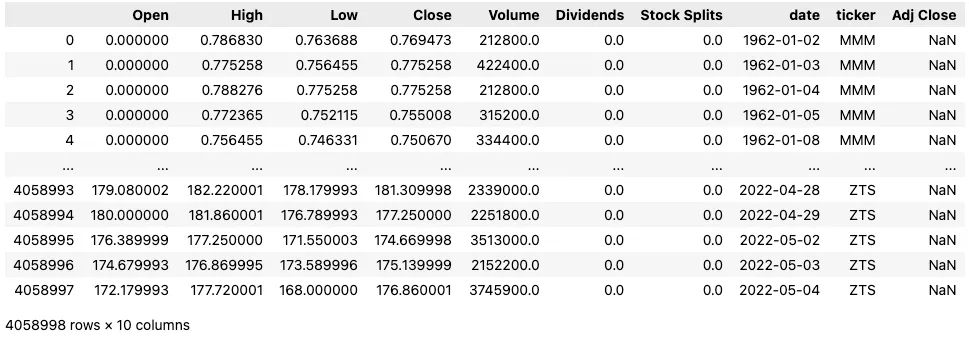

We get the list of stocks on the S&P500 (See the end for data source) and access Yahoo Finance to obtain the historical performance of each stock on the list. A master database is created with all stocks.

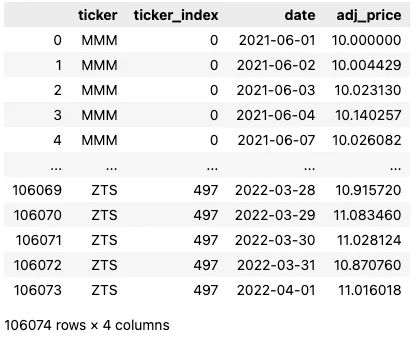

We arbitrarily fix the start and end date of our investment period to 2021 April ~ 2022 March. “Adjusted close” is used for stock price, and all stock prices are normalized to $10 based on their price at the beginning of the investment period. This is because we want to invest equally ($10 per stock) in each stock and not be swayed by the stock price. Each stock ticker is assigned a stock index, as this is required by the Genetic Algorithm library we will be using. Below is how the data looks like to be fed to the Genetic Algorithm:

Training

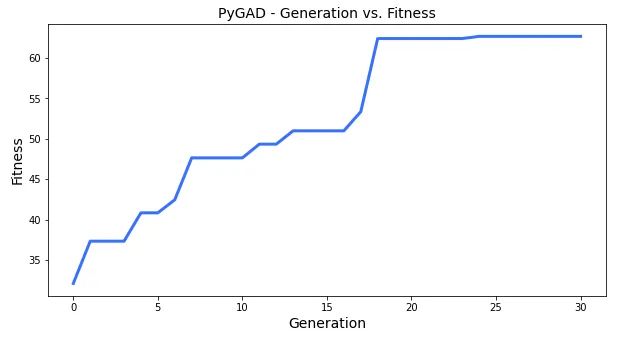

As GA has many parameters (# of generations, # solutions per population, # % of mutating genes, etc.), we do a quick hyperparameter optimization to find the best parameters. Then we train the algorithm to find the best stock portfolio. As seen in the below chart, the algorithm is able to double the fitness (a.k.a risk-adjusted return) around 20 generations, beyond where the fitness does not improve.

Results - Benchmark 1: S&P 500

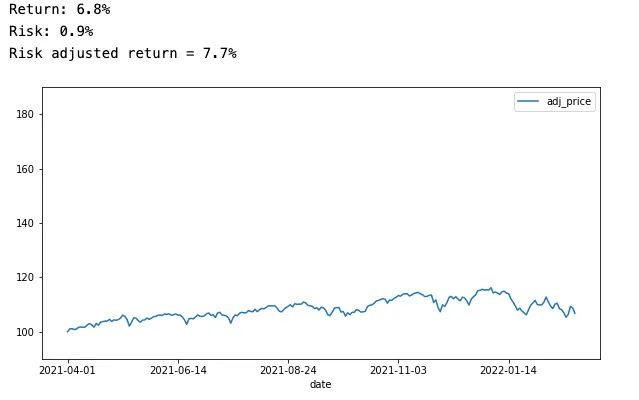

Firstly, we wanted to improve the performance of the market index S&P500 so let’s take a look at how it performed in the investment timeframe:

S&P 500’s performance was totally unremarkable during this time period with ~7% annual return, and ~1% daily risk (standard deviation), which yields ~8% risk-adjusted return. As this benchmark is too easy to beat, let’s find ourselves another benchmark:

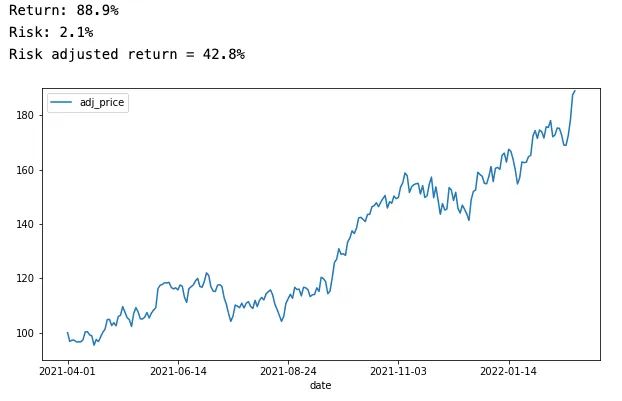

Results - Benchmark 2: Top 10 performers

During the investment time frame, we selected the 10 stocks that achieved the highest return (Note that this is ONLY return, which does not take “risk” into account). The top 10 stocks were ‘DVN’, ‘APA’, ‘MRO’, ‘COP’, ‘CF’, ‘FTNT’, ‘OXY’, ‘FANG’, ‘NVDA’, and ‘MOS’. Most of these companies are in energy-related business with exceptions like NVIDIA.

As seen above, the portfolio of these 10 companies returned ~90% growth with ~2% risk. Overall, the risk-adjusted return was 42.8%.

Our Results

Our model has identified the combination of ‘CERN’, ‘DVN’, ‘DRE’, ‘ABBV’, ‘SEE’, ‘ORLY’, ‘WST’, ‘COP’, ‘ED’, ‘PSA’ stocks as the top portfolio with the maximum risk-adjusted return. Some of these companies are also present in Benchmark #2 — a.k.a Top performers — but we see new entries such as Abbvie.

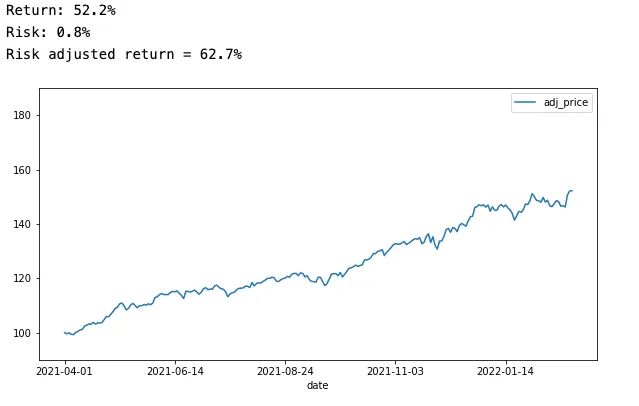

The model’s normal return is below that of top performers and stands around 52%, however, it is able to achieve a significantly lower risk: 0.8%. As you can see in the above graph, the portfolio does not experience any swings and it just keeps increasing in a consistent manner. The portfolio overall achieves a risk-adjusted return of 62% which is 20pp above the top performers' portfolio.

Conclusion

We trained a genetic algorithm for finding the portfolio with the maximum risk-adjusted return. The genetic algorithm helped us find a “good enough” solution among billions of possible portfolios. Higher returns can be achieved with further training.

You can find the data and code in this GitHub Repository.

Happy hacking!
